Economic Multilanes Stick Sachet Packing Machine Complete Line Price
The multilanes stick sachet packing machine complete line is a highly intelligent packaging machine that uses an advanced microcomputer chip to control the photoelectric tracking and correction system, which can save manpower and material resources and improve work efficiency. The complete multilane packaging machine line uses an intelligent CNC system, imported stepper motors, advanced photoelectric systems, stable performance, and a touch-operated color LCD display that can execute most of the function settings. It is the best choice for achieving economical and reasonable packaging.

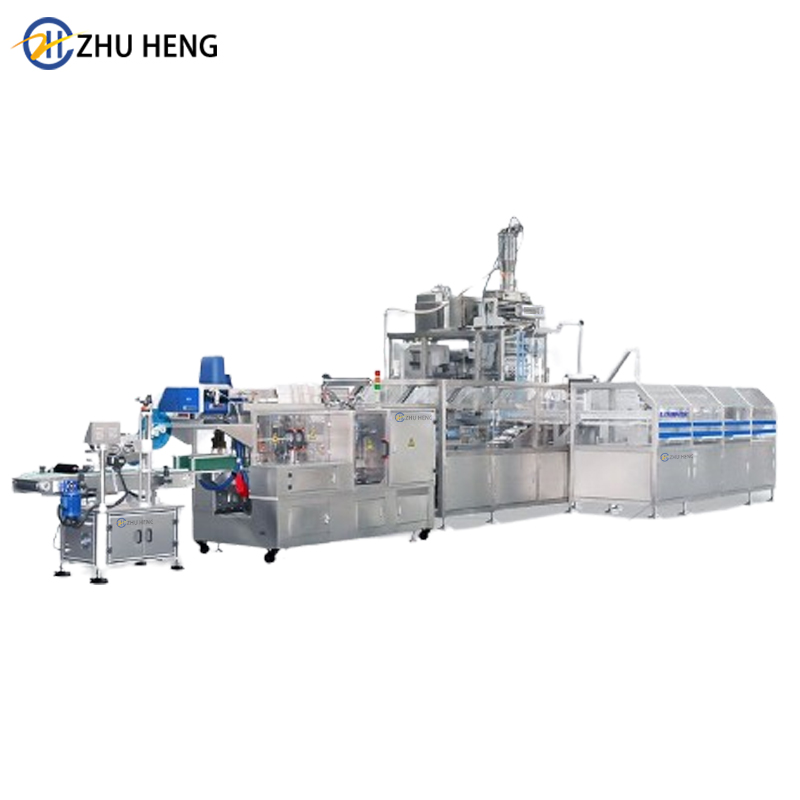

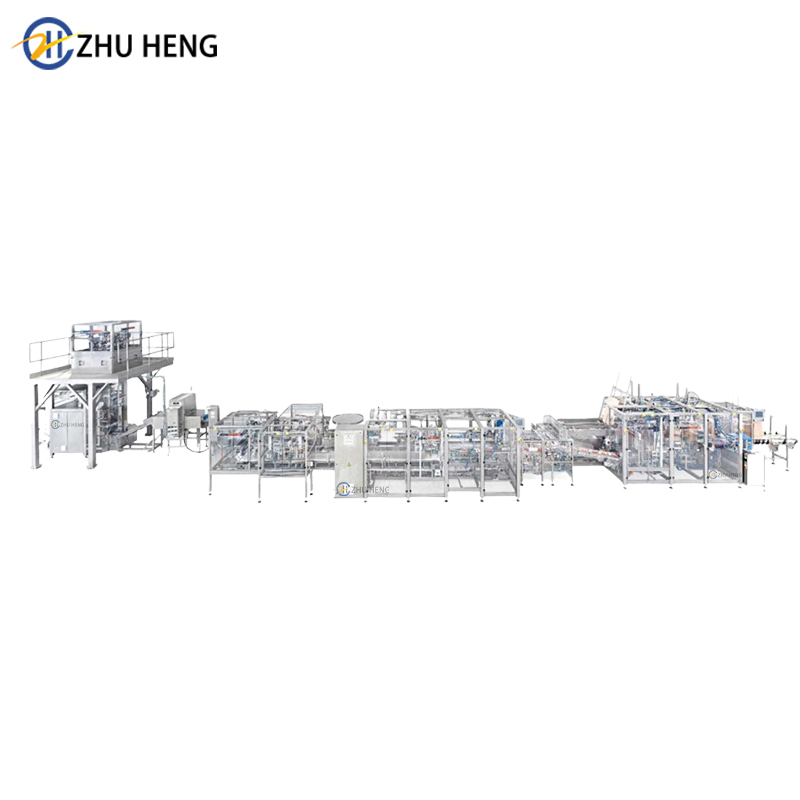

Multilanes stick sachet packing machine complete line photos
Lane number：2-8lanes
Measuring range：1-30ml /G(customized)
Packing speed：30-50 lane/min
Film width：Max.280mm
Bag length：50-180mm
Bag width：17-65mm
Power：220V, 50/60Hz, 9.5kw
Dimension：2259(L)*1789(W)*3035(H)mm
Machine weight：1200KG
1. The whole machine is made of stainless steel, with oil pressure lifting, which is particularly suitable for GMP certification.
2. The mechanical transmission method is adopted, which makes the structure extremely simple, stable and with strong overload capacity.
3. The filling adopts a servo motor dynamic screw, which has accurate positioning, high precision, fast speed, large torque, long life, adjustable speed and good stability.
4. The stirring adopts a maintenance-free reduction motor produced in Taiwan, which has low noise, long life and lifetime warranty.
5. The design of feedback specific gravity tracking overcomes the accuracy error caused by changes in material specific gravity.
6. The fully sealed organic glass and stainless steel split material box does not leak dust, ensures high precision nitrogen filling, and the filling outlet is equipped with a dust suction device.
7. For easy-flowing materials, the corresponding discharge port leak-proof valve is equipped to prevent material from falling.
Applicable packaging materials
① Blocks: candy, chocolate, rock sugar, biscuits, cakes, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed food, daily necessities, etc.;
② Granules: monosodium glutamate, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials, etc.;
③ Powders: condiments, monosodium glutamate, salt, glucose, fine sugar, milk powder, washing powder, pesticides, fertilizers, chemical raw materials, etc.;
④ Liquids: rice wine, soy sauce, rice vinegar juice, beverages, detergents, etc.;
⑤ Sauces: ketchup, peanut butter, jam, chili sauce, bean paste, etc.;
⑥ Other baggable materials.
Our professional engineers will design the most suitable multilanes packing machine complete line solution for your production line to meet the different needs of various complex production lines. In actual application, we will also continuously optimize and improve the multilanes packing machine complete line solution based on the operation status of the production line and customer feedback to ensure that it is always in the best working condition.
12 Months Guarantee
★ 12 months free main parts change (Please return the damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
Customization
All our machines can be customize , according to your product’s features and your workshop environment, or your production line.
After-sales Service Provided
one year warranty and lifetime maintenance. During the warranty period, accessories damage by non-human factors will be replace free of charge; outside the warranty period, accessories will be provided at cost price.
