Multi-Row Liquid Sachet Packing Machine High-Output Automatic Packaging Machine
This multi-row liquid sachet packing machine can fill and seal multiple pouches simultaneously in one cycle, with each row running independently, ensuring smooth operation even at fast and high speeds, significantly increasing production while maintaining excellent precision and consistency. The automatic multi-lane packaging machine uses a servo-driven filling system, PLC control and touch screen operation, allowing operators to easily adjust parameters to suit different products and package sizes. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

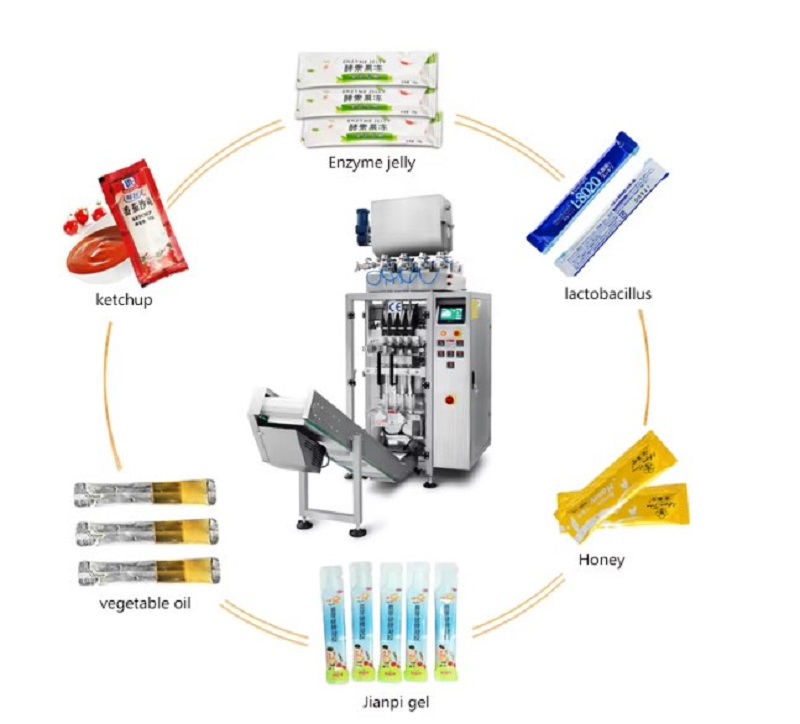

Multi-row liquid sachet packing machine pictures
Multi-Row Liquid Sachet Packing Machine High-Output Automatic Packaging Machine
Track Number:2~12 Rows
Filling Method:1.Piston pump;2.Peristaltic Pump
Capacity:Max.40 cycle/min
Sachet Size:L:45–120mm; W:35-90mm
Film Width & Thickness:Max.720mm;0.07-0.1mm
Sealing Type:3/4 sides sealing
Cutting Type:1.Straight Cutting;2.Zig Zag Cutting;3.Continuous Cutting
Air & Power:0.8 mpa 0.8m3/min; 4.1kw
DIM & WT:1153*1654*1750mm; 400kg
1. Multi-channel design to increase packaging speed. We currently have 4-16 channels to choose from.
2. The full set of electrical appliances and control systems use Schneider PLC, Siemens touch screen, Sick sensor, FESTO cylinder and other well-known brand electronic components.
3. The frame material is SUS304 stainless steel to ensure service life.
4. The multi-row liquid sachet packing machine will automatically complete all packaging processes from metering, feeding, filling, printing, to finished bags.
5. The vertical design makes the machine more convenient to install, smaller in size, and can be flexibly adapted to various workshops.
Shanghai Zhuheng has rich experience, expertise, resources and capabilities in multi-row liquid sachet packing machine manufacturing. According to customer requirements, we can tailor an efficient, economical and high-quality multi-lane packing machine solution that meets their needs.
Multi-row liquid sachet packing machine is ideal for packaging liquid medicines, sauces, juices, oils, cosmetics, etc., and can easily handle medium and low viscosity liquids.
Multi-Row Liquid Sachet Packing Machine High-Output Automatic Packaging Machine
High-quality materials: The plywood boxes are made of high-quality wood, which is sturdy and durable with good load-bearing capacity.
Fumigation treatment: The export fumigated plywood boxes have been strictly fumigated to ensure that they do not contain any harmful organisms and meet international export standards.
Quick connection design: The box adopts a quick connection design, which is easy to disassemble and assemble, saving time and reducing labor intensity.
Easy to open and reuse: The box has a simple design and is easy to open, which is convenient for cargo loading and unloading. At the same time, the plywood box can be reused to reduce logistics costs.
Pre-Sales Service
1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.
After-Sales Service
1. Training how to install the machine, training how to use the machine.
2. One year warranty, lifetime repair
