Peanut Sauce High-Speed Multi-Row Packing Machine Small Strip Bagging Machine
This peanut sauce multi-row packing machine features a sturdy stainless steel frame, servo-driven pistons or pumps for precise metering, and PLC control with a user-friendly interface. Multiple lanes run in parallel, each row operates independently, ensuring consistent filling levels and perfect seals for each unit. Ideal for sachets or strip packaging, the small strip bag multi-row packing machine can be customized for a variety of packaging sizes and film materials. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

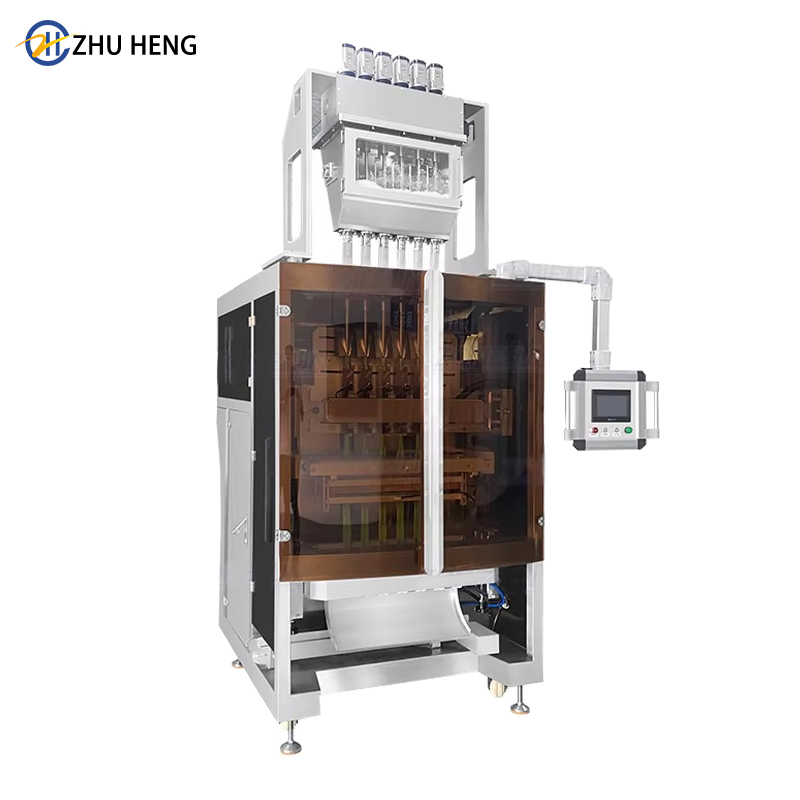

Peanut sauce multi-row packing machine photo
Peanut Sauce High-Speed Multi-Row Packing Machine Small Strip Bagging Machine
1. The peanut sauce multi-row packing machine can produce multiple columns of bags at the same time;
2. The main functions of the machine: automatic film separation at the correct position, liquid metering and filling, multi-column bag forming, filling and sealing, cutting, sensor tracking, counting capacity;
3. Other functions: emergency stop, automatic machine stop at set capacity, counting capacity and clearing, ready bag output, manual testing of each step of the machine, etc.;
4. Stainless steel contact parts and machine housing, high performance in liquid operating environment;
5. High-precision photoelectric sensor automatically tracks the eye mark printing on the film roll, so as to accurately cut each bag;
6. PLC controller, powerful, can control the working steps of the entire machine.
7. One peanut sauce multi-row packing machine can produce different products at the same time, saving costs;
8. Peristaltic pump feeding, clean and sanitary, saving space;
9. The small strip sachet multi-rowpacking machine is a N-channel packaging machine with fast speed and high efficiency, about 120-150 bags per minute
Track Number:2~12 Track
Filling Method:1.Piston pump; 2.Peristaltic Pump
Capacity:Max.40 cycle/min
Sachet Size:L:45–120mm; W:35-120mm
Film Width & Thickness:Max.960mm;0.07-0.1mm
Sealing Type:3/4 sides sealing
Cutting Type:1.Straight Cutting;2.Zig Zag Cutting;3.Continuous Cutting
Air & Power:0.8 mpa 0.8m3/min; 5.5kw
DIM & WT:1415*1686*2130mm; 500kg
Designed to handle liquid or semi-liquid products such as ketchup, mayonnaise, salad dressing, hot sauce, etc., automatic sauce multi-row packing machine is able to revolutionize production lines by packaging multiple lanes of sachets or small packages simultaneously.
The displayed multi-row packing machine for sauce may not meet your requirements. We can customize it according to the different usage requirements of users to perfectly solve the problem of production line packing.
Peanut Sauce High-Speed Multi-Row Packing Machine Small Strip Bagging Machine
Free export fumigation plywood box with quick connection design, easy to open and reuse;
Internal plastic film packaging can protect goods from salt, wind, or damage;
1. Customer consultation and technical support: Provide customers with consulting services on product use, repair and maintenance, and answer questions encountered by customers during operation and use.
2. Technical training: Provide training on product operation, maintenance and repair according to customer needs to ensure that customers can use and maintain products correctly.
3. Accessories supply: Provide original accessories to ensure the quality and performance of accessories to meet user needs.
4. One-year warranty, lifetime maintenance
5. After-sales service tracking: Track and feedback the after-sales service process, timely understand customer needs and opinions, and continuously improve service quality.
